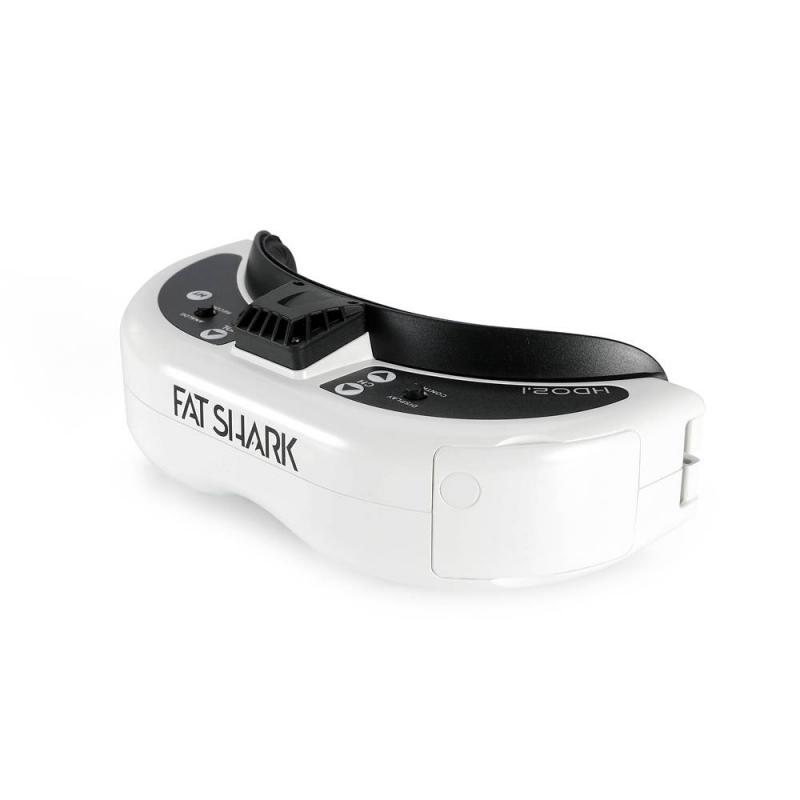

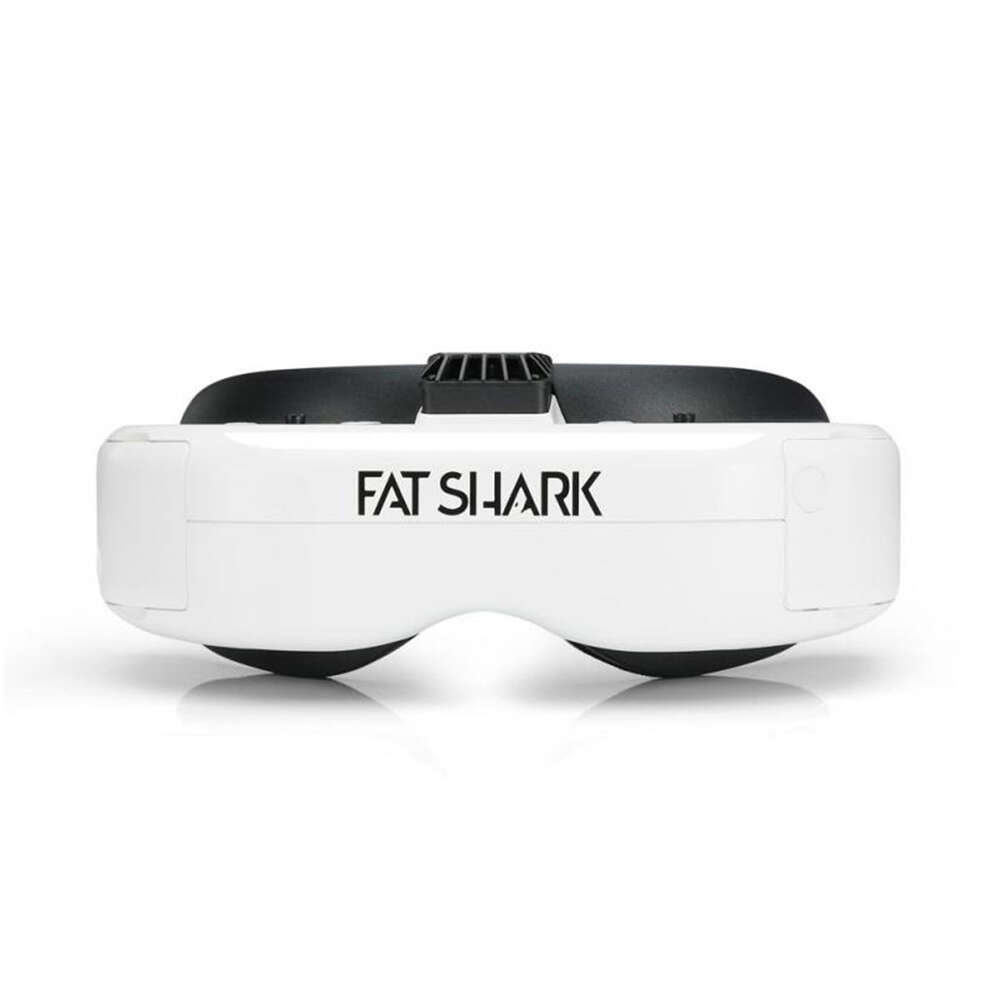

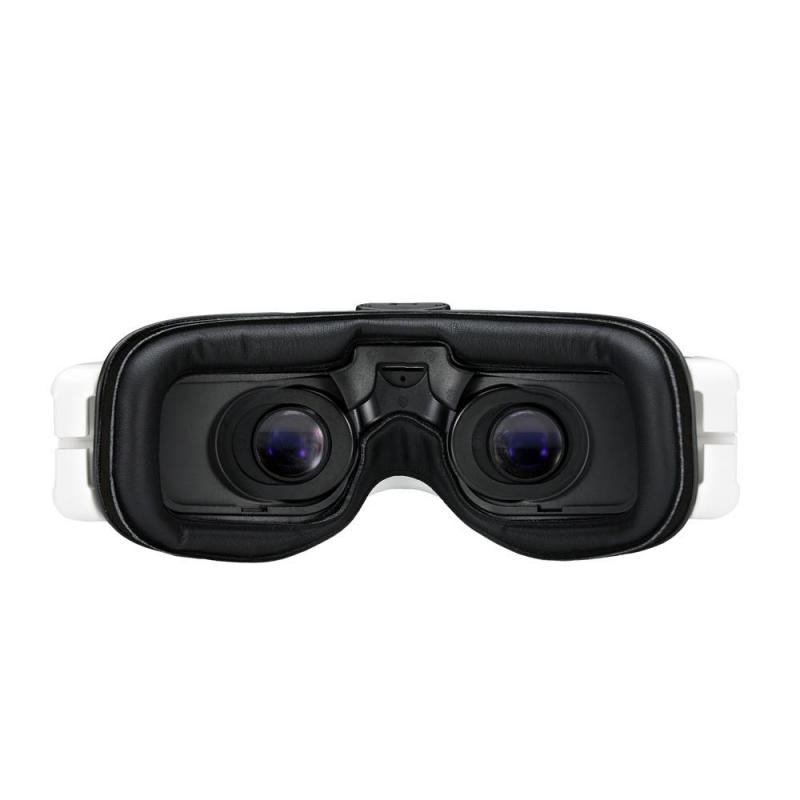

FatsharkDominator HDO V2.1 – FPV Racing Drone GOGGLES

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Specification

OPTICS

• FOV (field of view): 46 degrees diagonal
• IPD (interpupillary distance): 54 to 74 mm (adjustable)
• Focus: +2 to -6 diopters (adjustable)

DISPLAY

• Two Sony 0.5” OLED displays
• Resolution 1280 X 960
• NTCS/PAL auto selecting
• AV Mode 4:3
• AV Mode 16:9
• HDMI Mode 16:9

AUDIO

• Stereo

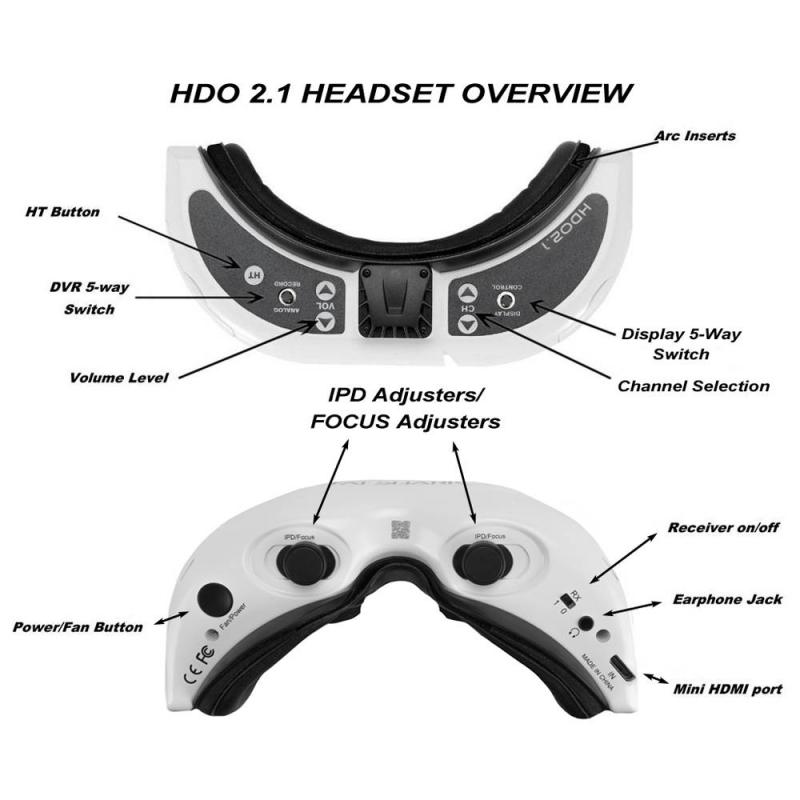

USER CONTROLS

• Channel Selection
• Volume Control
• Mode Selection
• Display Control (Brightness and Contrast)
• DVR Control
• Power Button / Fan Control

ELECTRICA

• Power Supply: 7 – 13V input voltage (2S – 3S Supply)
• Power Consumption: 320mA @ 7.5V input power (no RX module)
• 770mA @ 7.5V input power (Rapid
• Analog DVR: MicroSD support to 32 GB
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback (native recording, no codec support)
• Upgradeable via SD card

BATTERY

• 7.4V, 1.8A 18650 Battery Case (optional))

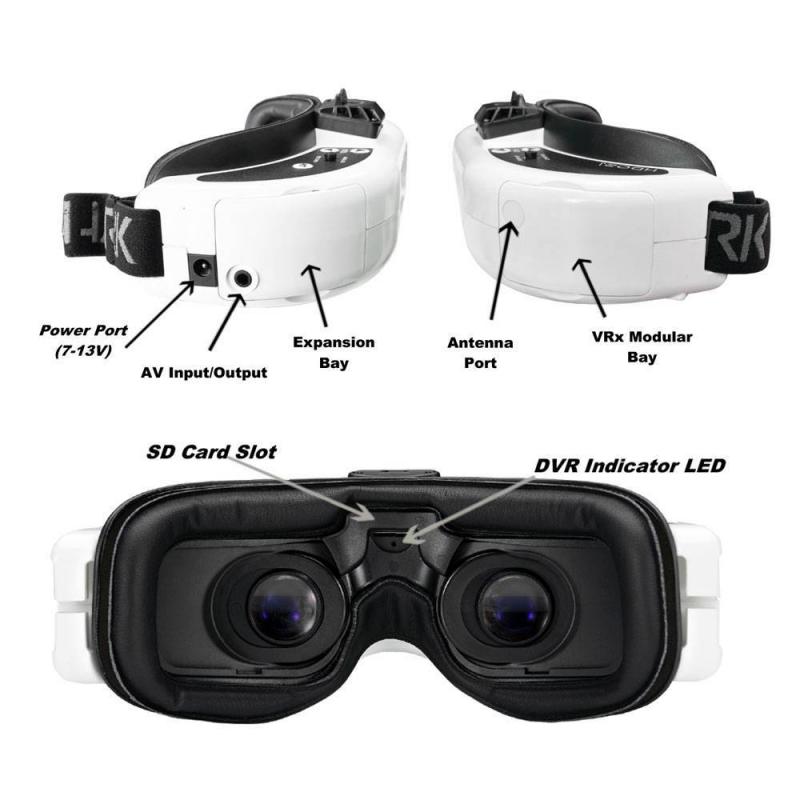

• Interface
• 3.5mm AV in/out port
• Power input port
• 3.5mm 3p earphone port
• MicroSD
• RF Module Bay
• HT connector 3 pin internal connection
• Power Button

MECHANICAL

• Ergonomic molded headset w/ adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 206.8 g

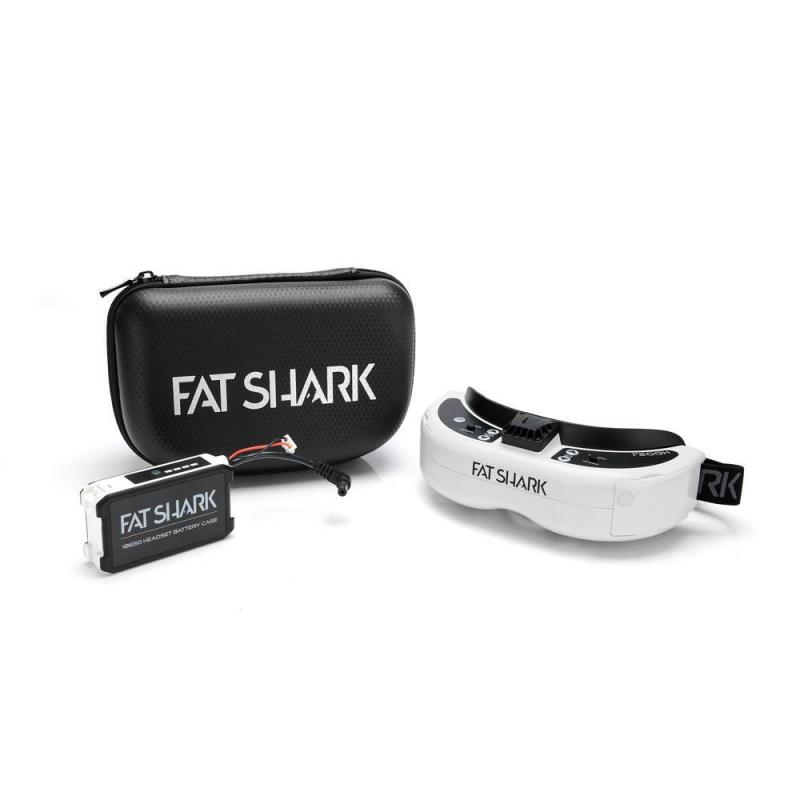

Includes

• 1 x Fat Shark Dominator HDO 2.1 FPV Goggles
• Carrying Case
• 7.4V 1865 Battery Case
• Lens Cleaning Cloth
