HAKRC F4 4530D V2
HAKRC F4530D Flight Controller provides great power all in a 30.5×30.5mm mounting pattern.The control is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!
Try Fpv Shopping Event
Hurry and get discount up to 5%
Sale_coupon_15
₹3,168.00
17
People watching this product now!
- Warranty 1 year
- Free 30-Day returns
Payment Methods:
Description

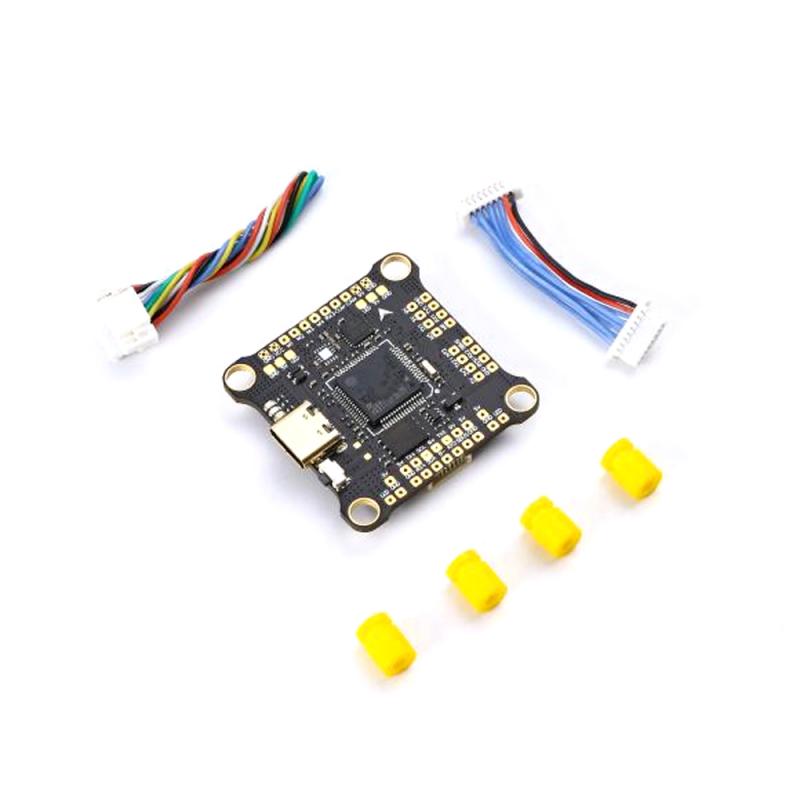

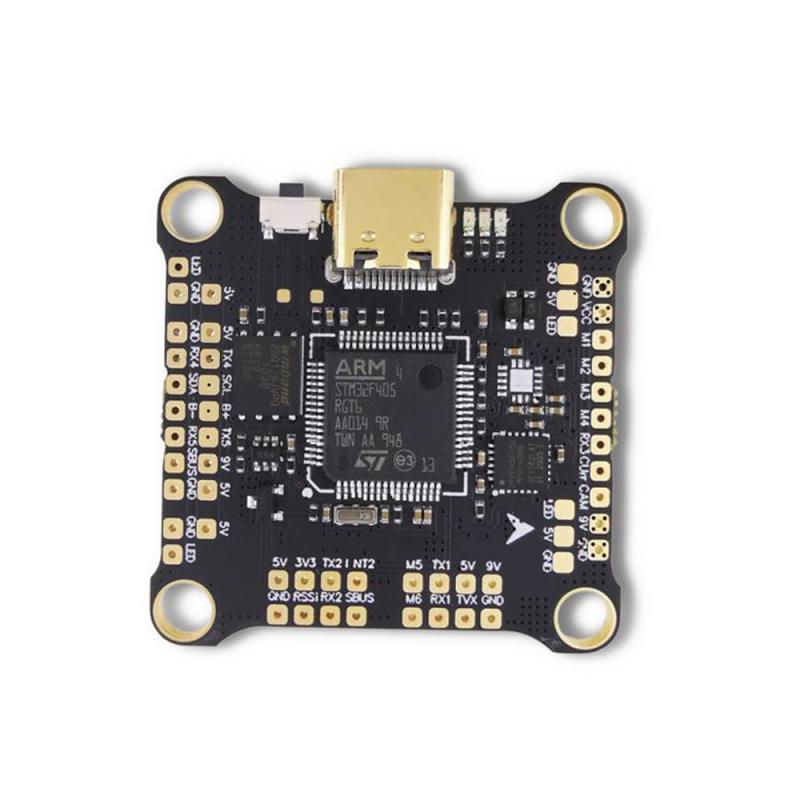

HAKRC F4530D FC

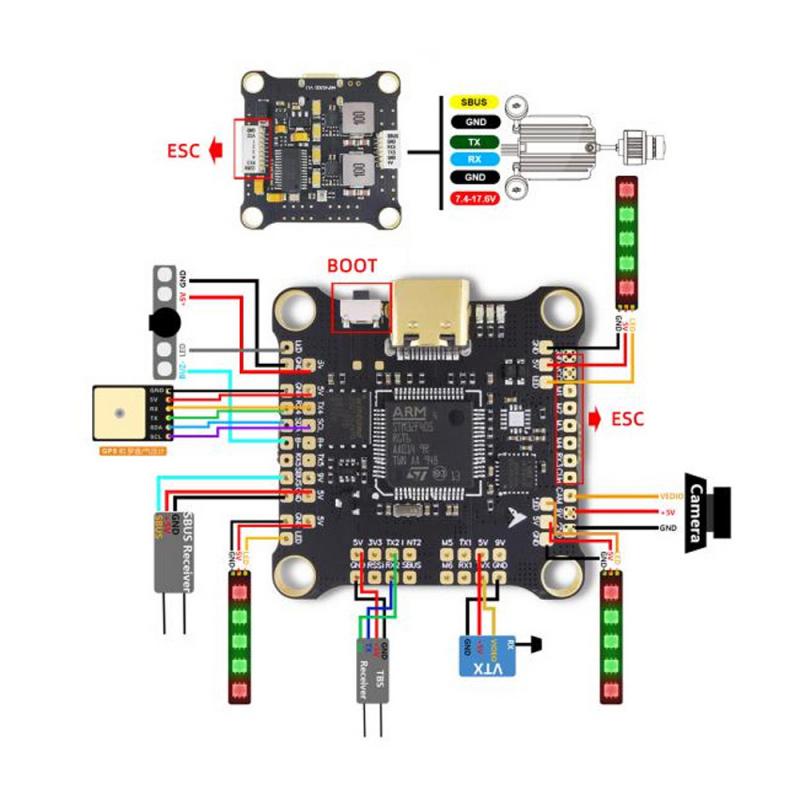

HAKRC F4530D Flight Controller provides great power all in a 30.5×30.5mm mounting pattern.The control is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus,ELRS， PPM, CRSF, DSMX, iBus, DUMD, etc.
FC Specification
- Product size: 36x36mm
- Packing size: Φ62*33mm

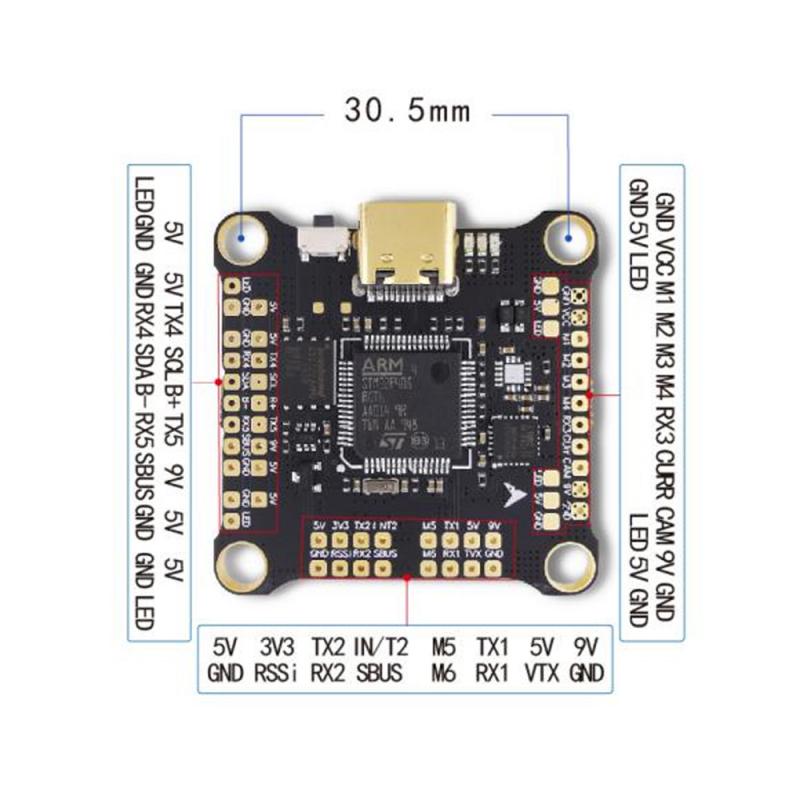

- Installation hole distance: 30.5×30.5mm φ4mm
- Weight: 6g
- Packing weight: 20g
- MCU: STM32F405RGT6
- IMU:MPU6500
- Baro: Infineon DPS310 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: 16MB
- B E C：5V/3A ; 9V/2.5A
- USB interface: TYPE-C
- Input voltage: 3—6S
- Firmware: betaflight_4.2.9HAKRCF405D
- Uart serial port: 5
- Assistant software：betaflight-configurator
- DJI digital image transmission：support
