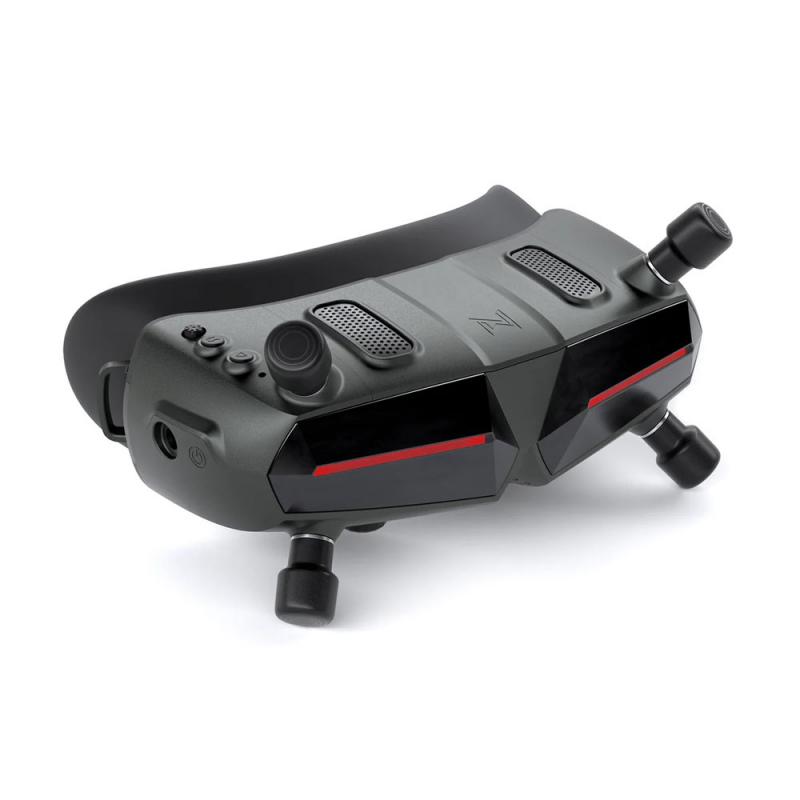

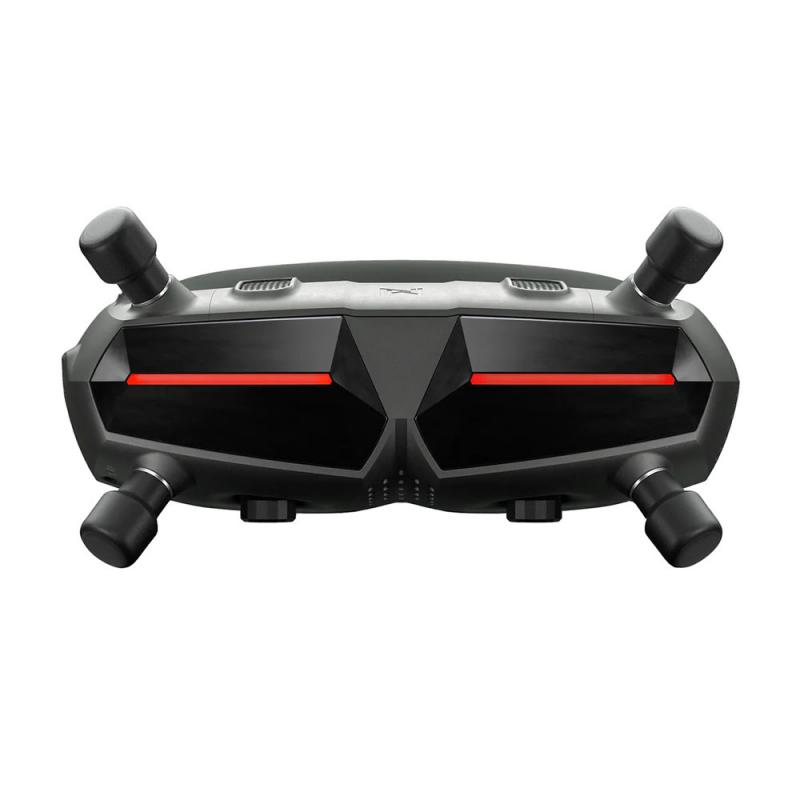

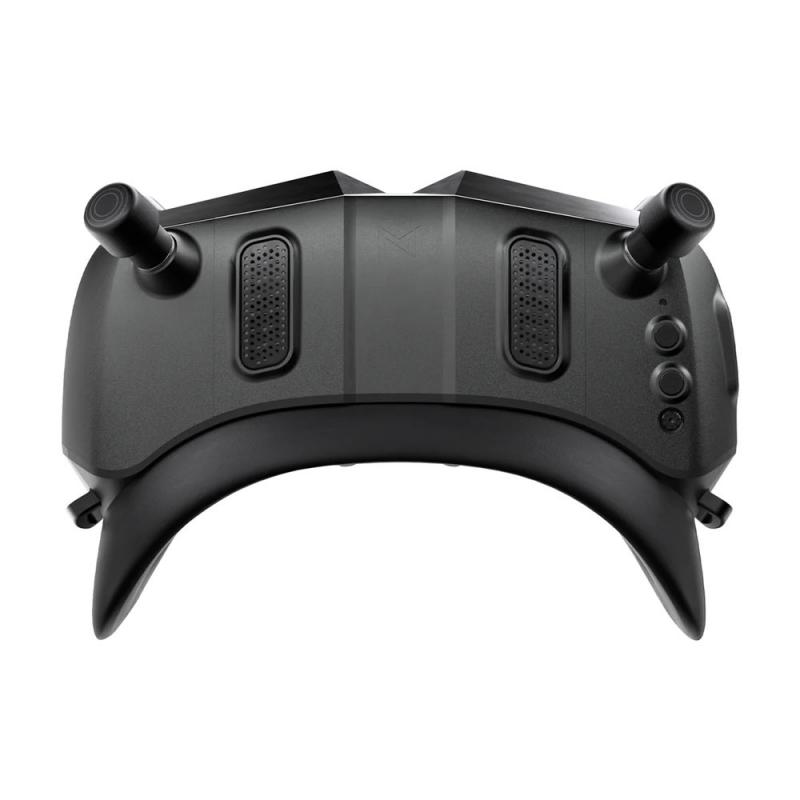

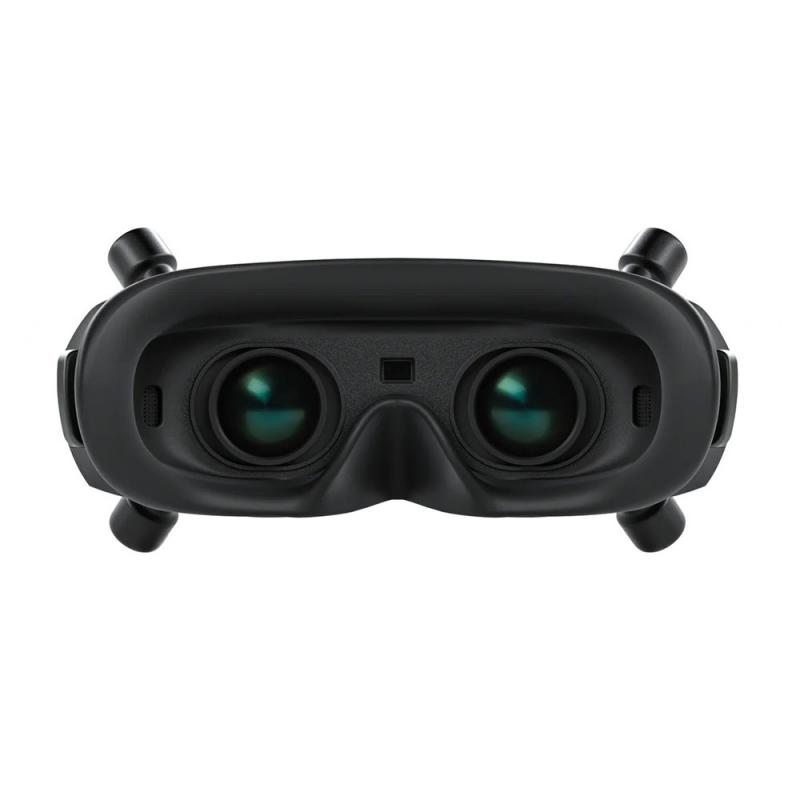

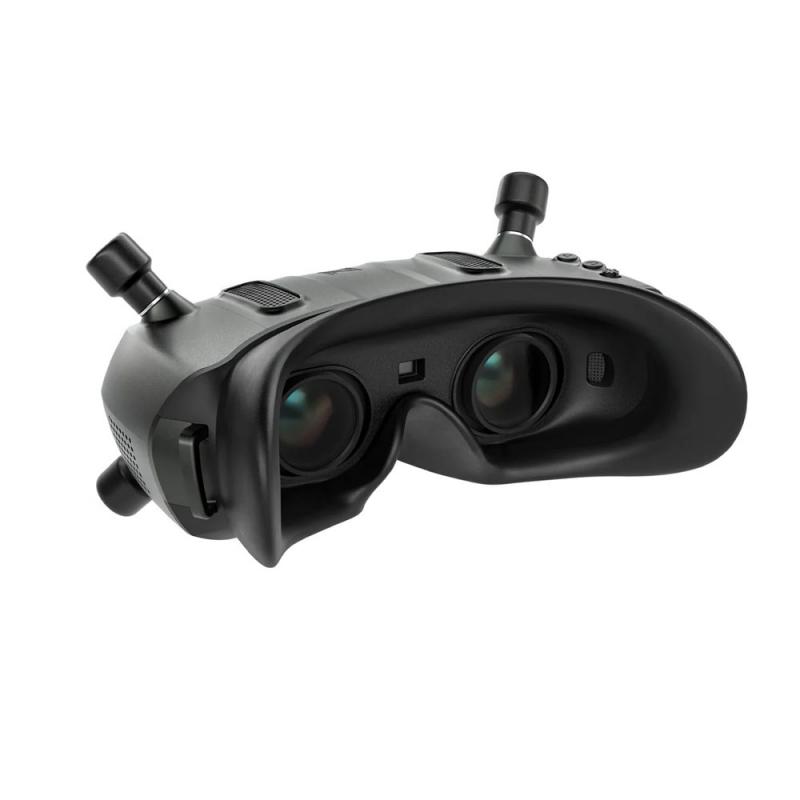

Walksnail Avatar HD Goggles X

As the Walksnail Avatar born, Walksnail have always been constantly collecting market’s feedback and suggestions. In the new generation of research and development, Walksnail fully consider each function for customers like HDMI input and CVBS input (AV IN interface).

Meanwhile, Walksnail have also optimized wider pupil adjustment range, improved optical clarity, suitable for different people’s face shapes, and Walksnail are committed at developing the APP, which can realize firmware upgrades, fc adjustment, social media sharing, without cumbersome computer operations.

In order to reduce the user’s cost of HD system, Walksnail designed the upper part of the goggles to be removable, make sure the receiving module can be replaced, so that you can maintain the latest without replacing the goggles every year.

Specification

• Avatar HD Goggles X Avatar HD Goggles X
• Communication Frequency 5.725-5.850GHz
• Transmitter Power(EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

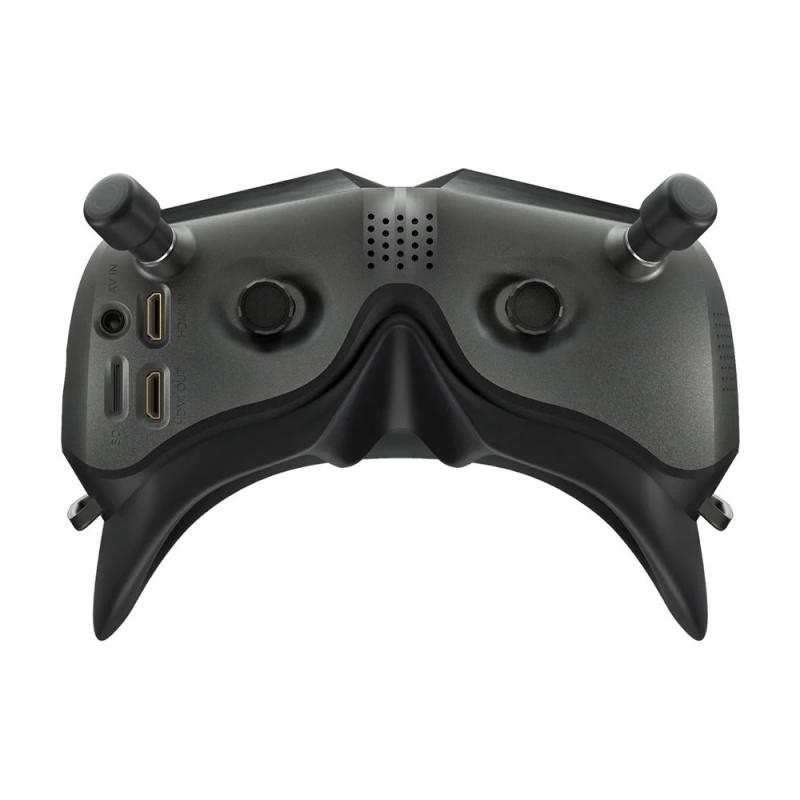

• I/O Interface HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot
• Tranificationssmission Resolution 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps
• Code Rate Max 50 Mbps
• Min. Latency Average 22ms
• Average Gain 2dBi
• Polarization LHCP
• Transmission Distance ＞4km
• Channel 8
• Screen Resolution 1920*1080/100Hz
• Screen Material OLED
• IPD Mechanical Range 57mm-72mm
• Adjustable Focus Range ＋2.0 to－6.0 Diopter
• FOV 50°
• Power Input 7-26V(2S-6S)
• SD card Support 256G
• System Avatar HD system
• Wide Foam material PU
• Built-in WIFI Yes
• Built-in Gyro Yes
• Built-in Bluetooth Yes

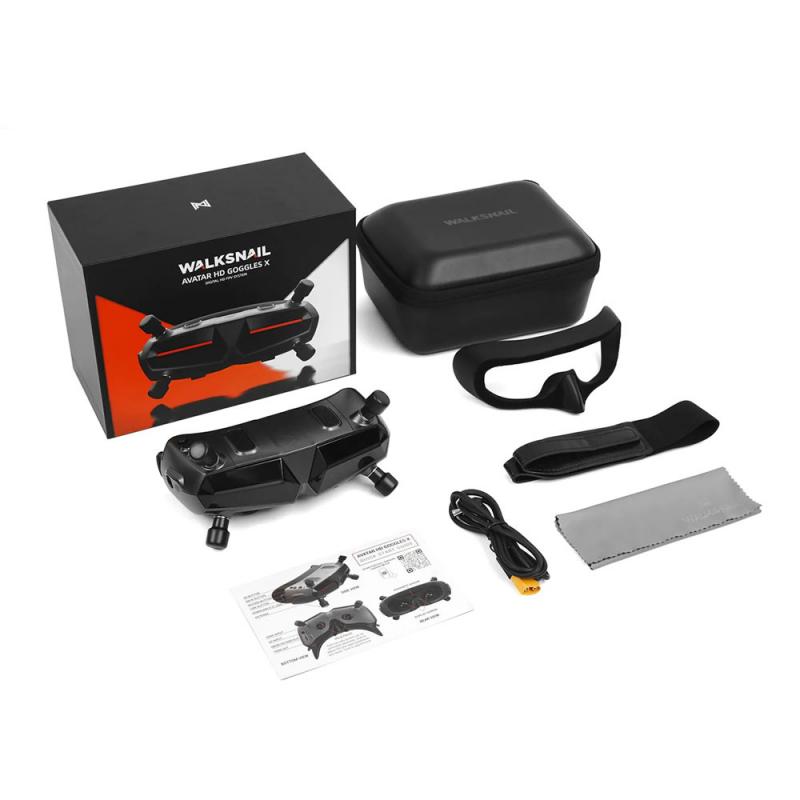

Product List

• Walksnail Avatar HD Goggles X x1
• Wide Foam (PU) x1
• Lens cleaning cloth x1
• XT60 to DC 5.5*2.1mm power cord x1
• Storage Box x1
